Rear Lid, Adjusting: Procedure

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

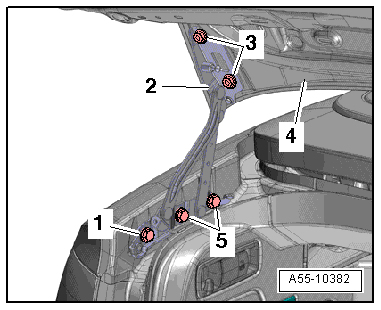

Fig 1: Rear Lid, Adjusting

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Gap dimensions. Refer to REAR LID, ADJUSTING .
Tightening specifications. Refer to OVERVIEW - REAR LID .

Side and Length Adjustment at the Hinge

-- Loosen the left and right nuts -3- on the hinge -2-.

-- Adjust the rear lid -4- from side to side and from back to rear.

-- Tighten the nuts.

Height Adjustment at the Hinge

-- Loosen the left and right bolts -1 and 5- on the hinge -2-.

-- Adjust the height of the rear lid -4-.

-- Tighten bolts -1 and 5-.

Adjusting Catch Height

Fig 2: Adjusting Striker Pin Height

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Tightening specification. Refer to OVERVIEW - REAR LID .

-- Remove the rear lid end piece trim panel. Refer to LUGGAGE COMPARTMENT TRIM PANELS .

-- Loosen the nuts -1 and 3- just enough so that it is possible to move the catch -2-.

During the closing test, the rear lid must fall from the balance position into the rear lid lock and engage completely.

-- Tighten the nuts -1 and 3-.
