Rear Lid, Adjusting: Notes
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
Special tools and workshop equipment required
- Gauge - Gap Adjustment:3371

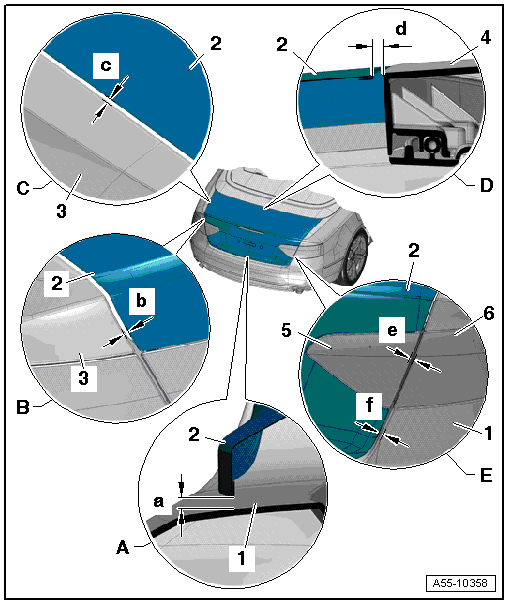

Gap Dimensions
- A - Rear lid to the Bumper Cover
- Gap dimension -a- = 5.0 mm
-1- Bumper cover
-2- Rear lid
- Adjusting. Refer to REAR LID, ADJUSTING .
- B - Rear Lid to the Rear Side Panel
- Gap dimension -b- = 3.7 mm
-2- Rear lid
-3- Rear side panel
- Adjusting. Refer to REAR LID, ADJUSTING .
- C -Rear Lid to the Rear Side Panel
- Gap dimension -c- = 3.5 mm
-2- Rear lid
-3- Rear side panel
- Adjusting. Refer to REAR LID, ADJUSTING .
- D - Rear Lid to the Convertible Top Compartment
- Gap dimension -d- = 4.5 mm
-2- Rear lid
-4- Convertible top compartment cover
- Adjusting. Refer to REAR LID, ADJUSTING .
- E - Rear Lid to the Bumper Cover and the Tail Lamp
- Gap dimension -e- = 3.7 mm
- Gap dimension -f- = 3.7 mm
-1- Bumper cover
-2- Rear lid
-5- Inner tail lamp
-6- Outer tail lamp
- Adjusting. Refer to REAR LID, ADJUSTING .
