Actuator, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

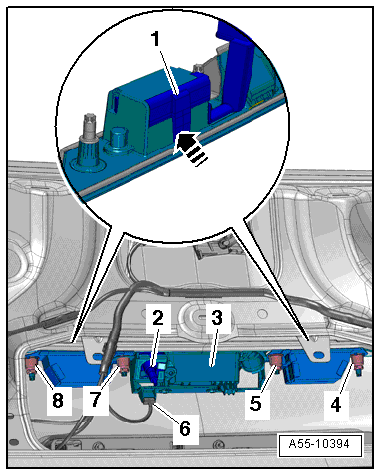

-- Remove the lock cylinder. Refer to LOCK CYLINDER, REMOVING AND INSTALLING .
-- If equipped, remove the Rearview Camera -R189- -item 2-. Refer to REARVIEW CAMERA SYSTEM .
-- Remove the cap nuts -5 and 7-.
-- Unscrew the cap nuts -8 and 4- and remove them together with the anti-theft protection.
-- Disconnect the connector -6- on the Release Button in Rear Lid Handle -E234- -3-.
-- Squeeze the locking springs -1- on the license plate lamp housing together -arrow- and remove the grip piece downward and out of the opening in the body.
