Overview - Fuel Filler Door Unit, Except AUDI RS5

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

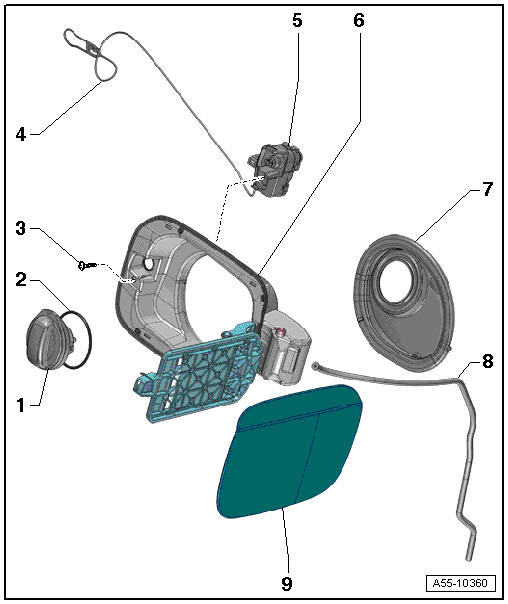

Fig 1: Fuel Filler Door, Fuel Filler Insert And Emergency Release Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Cap
- With strap
Seal
Bolt
- 1 Nm
Emergency Release Cable
- For opening the fuel filler door
- Removing and installing. Refer to FUEL FILLER DOOR EMERGENCY RELEASE, REMOVING AND INSTALLING .
Fuel Filler Door Unlock Motor -V155-
- Removing and installing. Refer to Fuel Filler Door Unlock Motor -V155-, REMOVING AND INSTALLING .
Fuel Filler Door Insert
- Removing and installing. Refer to FUEL FILLER DOOR, REMOVING AND INSTALLING .
- Must be replaced after removing
Fuel Filler Door Cup
- For the fuel tank filler tube
- Removing and installing. Refer to FUEL FILLER DOOR CUP, REMOVING AND INSTALLING .
Drain Hose
- From the fuel filler door insert
- Removing and installing. Refer to FUEL FILLER DOOR CUP DRAIN HOSE, REMOVING AND INSTALLING, EXCEPT AUDI RS5 .
Tank Flap Cup Trim
- Removing And Installing. Refer To FUEL FILLER DOOR COVER, REMOVING AND INSTALLING, EXCEPT AUDI RS5 .
