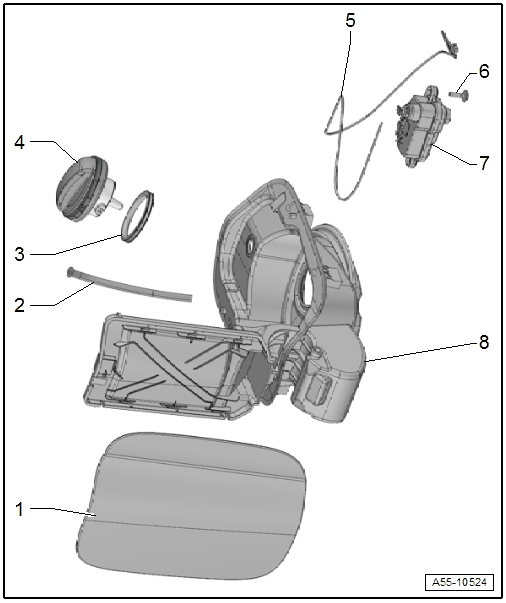

Overview - Fuel Filler Door Unit, AUDI RS5
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
- Fuel Filler Door Unit Trim
- Removing and Installing. Refer to FUEL FILLER DOOR COVER, REMOVING AND INSTALLING, AUDI RS5 .
- Drain Hose
- From the fuel filler door unit
- Removing and Installing. Refer to FUEL FILLER DOOR CUP DRAIN HOSE, REMOVING AND INSTALLING, AUDI RS5 .
- Seal
- Cap
- With strap
- Emergency Release Cable
- For opening the fuel filler door
- Removing and Installing. Refer to FUEL FILLER DOOR EMERGENCY RELEASE, REMOVING AND INSTALLING .
- Bolt
- 1.7 Nm
- Quantity: 2
- Fuel Filler Door Lock Motor -V155-
- Removing and Installing. Refer to Fuel Filler Door Unlock Motor -V155-, REMOVING AND INSTALLING, AUDI RS5 .
- Fuel Filler Door Unit
- Removing and Installing. Refer to FUEL FILLER DOOR, REMOVING AND INSTALLING .
- Must be replaced after removing
