Right Convertible Top Compartment Cover Switch -F291-, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

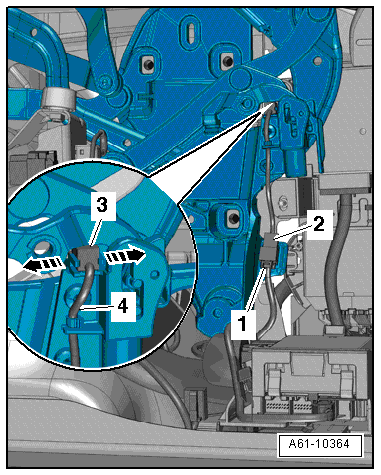

Fig 1: Identifying Right Convertible Top Compartment Cover Switch -F291-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the convertible top compartment cover emergency release. Refer to CONVERTIBLE TOP COMPARTMENT COVER EMERGENCY RELEASE, REMOVING AND INSTALLING .

-- Disconnect the connector -1-.

-- Open the release, free up the wiring harness -4- on the convertible top compartment cover emergency release and disconnect the connector -2- from the bracket.

-- Open the clips -arrows- and remove the convertible top compartment open switch -3- from its mount.
