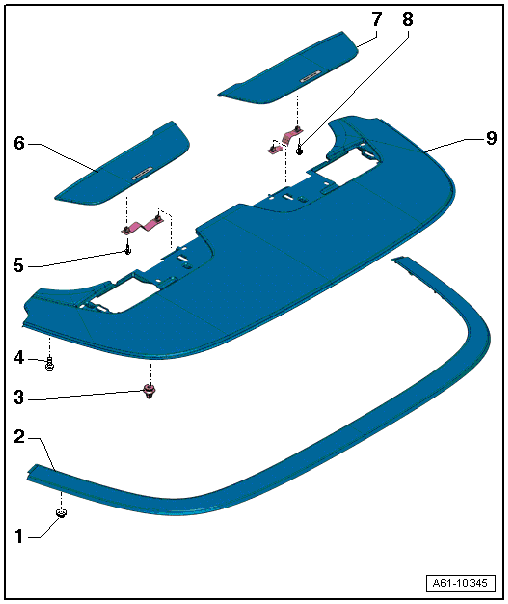

Fig 1: Identifying Trim And Decorative Trim Strip Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Nut
- Tightening specification. Refer to OVERVIEW - TRIM MOLDING AND COVERS .
Trim Strip
- For the convertible top compartment cover
- Overview. Refer to OVERVIEW - TRIM MOLDING AND COVERS .
Clip
- For the convertible top compartment cover trim
Bolt
- 2 Nm
Bolt
- 2 Nm
Left Trim Panel
- For the rollover support
- Removing and installing. Refer to TRIM FOR ROLLOVER SUPPORT, REMOVING AND INSTALLING .
Right Trim Panel
- For the rollover support
- Removing and installing. Refer to TRIM FOR ROLLOVER SUPPORT, REMOVING AND INSTALLING .
Bolt
- 2 Nm
Trim Panel
- For the convertible top compartment cover
- Removing and installing. Refer to CONVERTIBLE TOP COMPARTMENT COVER TRIM, REMOVING AND INSTALLING .
