Convertible Top Compartment Cover Inner Section, Convertible Top Compartment Cover Outer Section
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

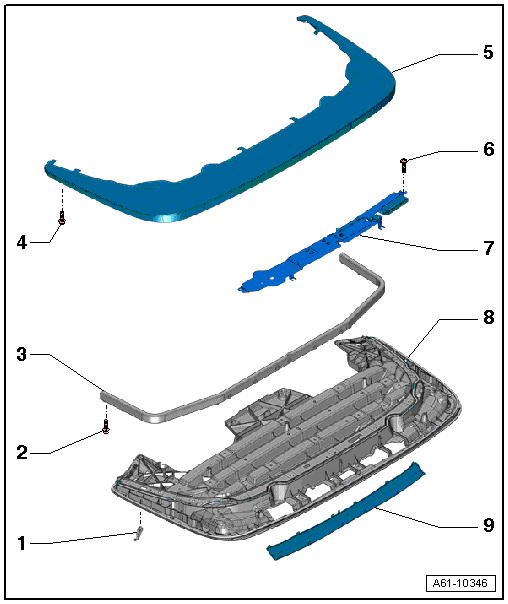

Fig 1: Identifying Convertible Top Compartment Cover Inner Section, Convertible Top Compartment Cover Outer Section
- Stop
- for the convertible top compartment cover inner section
- Bolt
- 2 Nm
- Frame
- For the convertible top compartment cover inner section
- Bolt
- 2 Nm
- Convertible Top Compartment Cover Outer Section
- Removing and installing. Refer to CONVERTIBLE TOP COMPARTMENT COVER OUTER SECTION, REMOVING AND INSTALLING .
- Bolt
- 2 Nm
- Bracket
- for the antenna module
- Removing and installing. Refer to ANTENNA SYSTEMS .
- Convertible Top Compartment Cover Inner Section
- Removing and installing. Refer to CONVERTIBLE TOP COMPARTMENT COVER, REMOVING AND INSTALLING .
- Service Cover
- For the antenna module
