Hinges, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

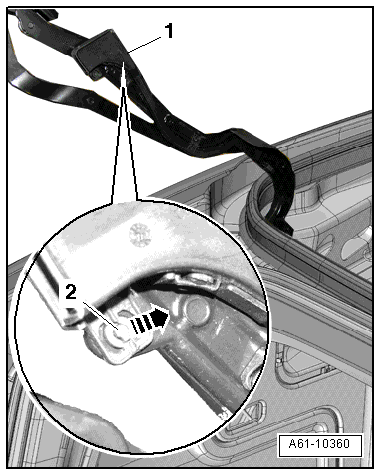

Fig 1: Identifying Hinge

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the convertible top compartment cover. Refer to CONVERTIBLE TOP COMPARTMENT COVER, REMOVING AND INSTALLING .

-- Remove the left and right luggage compartment trim panels. Refer to LUGGAGE COMPARTMENT TRIM PANELS .

-- Remove the side convertible top compartment trim panel. Refer to LUGGAGE COMPARTMENT TRIM PANELS , Overview - Luggage Compartment Trim Panels

-- Left: Remove the hydraulic pump and move it to the side with the wires still connected. Refer to HYDRAULIC UNIT (HYDRAULIC PUMP), REMOVING AND INSTALLING .

-- Press the release, disconnect the connector -1- and remove it from the bracket.

-- Remove the bolt -2-.

-- Cut the cable tie on the hydraulic cylinder from the convertible top compartment cover side.

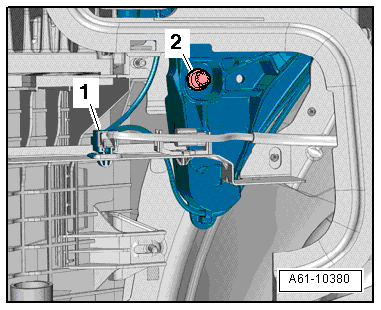

Fig 2: Cutting Cable Tie On Hydraulic Cylinder From Convertible Top Compartment Cover Side

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Push the expanding pins -2- in direction of -arrow- and remove the wiring harness cable channel -1- on the hinge.

-- Open the clip -2- on the hydraulic cylinder with a screwdriver -1- and pull it out to the side.

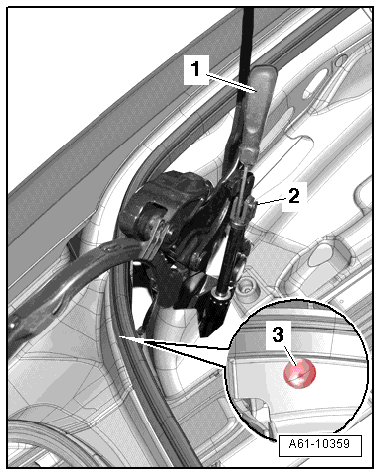

Fig 3: Open Clip -2- On Hydraulic Cylinder With A Screwdriver -1- And Pull It Out To Side

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Unclip the clip -3- using the :80-200 .

-- "Close" the hinge and remove the screws -arrows-.

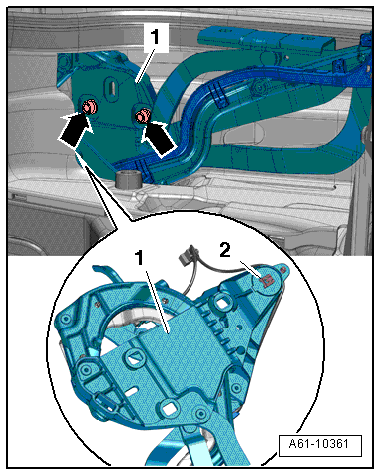

Fig 4: "Closeing" Hinge And Removing Screws

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the convertible top compartment hinge -1-.

-- Remove the clip -2- and remove the bolt from the hinge from the opposite side.

-- Remove the hydraulic cylinder from the mount on the hinge with the wires still connected.
