Adjusting The Center Adjusting Buffer:
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

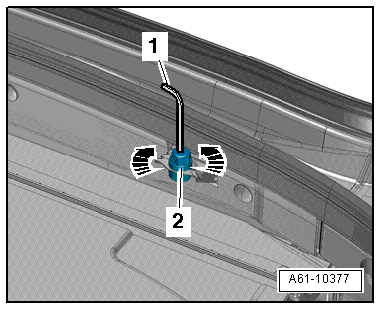

-- Turn the adjusting buffer -2- -arrows- using a hex socket wrench -1- until the closed lid makes contact.
- The rear lid must lie on the lid side stop with light tension.
- Check if the rear lid sits without tension and closes by pressing or pulling at the side edges of the rear lid.
-- Repeat the adjustment if necessary.
