Water Drain Hose, Routing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

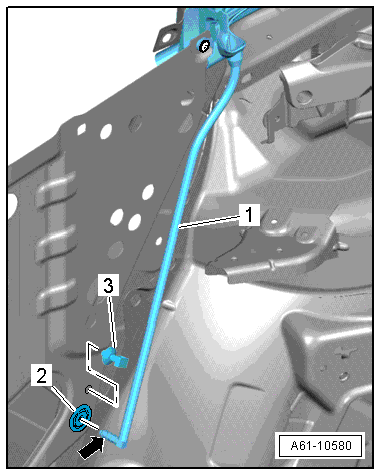

Fig 1: Identifying Route Of Water Drain Hose

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Route the water drain hose downward and insert it into the sidewall with the grommet.

-- Secure the water drain hose with the clip -3-.
