Convertible Top Compartment Cover Gap Dimensions
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

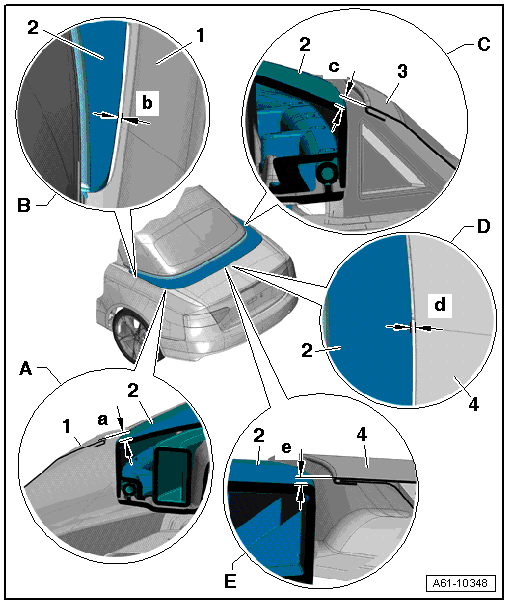

- A - Convertible Top Compartment Cover to Rear Side Panel
- Flush -a- = 0.0 ± 0.5 mm
-1- Rear side panel
-2- Convertible top compartment cover
- Adjusting. Refer to CONVERTIBLE TOP COMPARTMENT COVER, ADJUSTING .
- B - Convertible Top Compartment Cover to Rear Side Panel
- Gap dimension -b- = 4.5 mm
-1- Rear side panel
-2- Convertible top compartment cover
- Adjusting. Refer to CONVERTIBLE TOP COMPARTMENT COVER, ADJUSTING .
- C - Convertible Top Compartment Cover to Rear Side Panel
- Flush -c- = 1.2 ± 0.5 mm
-2- Convertible top compartment cover
-3- Rear side panel
- Adjusting. Refer to CONVERTIBLE TOP COMPARTMENT COVER, ADJUSTING .
- D - Convertible Top Compartment Cover to the Rear Lid
- Gap dimension -d- = 4.5 mm
-2- Convertible top compartment cover
-4- Rear lid
- Adjusting. Refer to CONVERTIBLE TOP COMPARTMENT COVER, ADJUSTING .
- E - Convertible Top Compartment Cover to the Rear Lid
- Flush dimension -c- = 0.0 ± 0.5 mm
-2- Convertible top compartment cover
-4- Rear lid
- Adjusting. Refer to CONVERTIBLE TOP COMPARTMENT COVER, ADJUSTING .
