Convertible Top Compartment Cover Emergency Release, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
-- Open the cover in the luggage compartment side trim panel.
-- Disconnect the connector to the right/left convertible top compartment cover switch Right Convertible Top Compartment Cover Switch -F291- /Left Convertible Top Compartment Cover Switch -F290-.

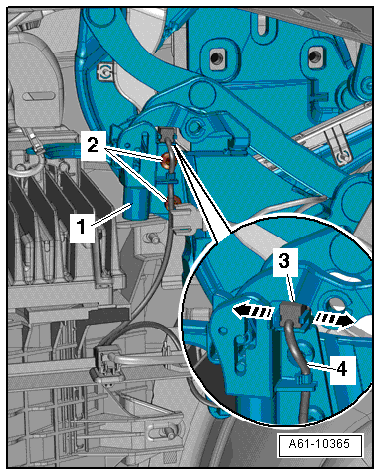

-- Free up the wiring harness -4- from the convertible top compartment cover emergency release.
-- Open the clips -arrows- and remove the convertible top compartment open switch -3- from its mount.
-- Remove the screws -2- and remove the convertible top compartment cover emergency release -1-.
