Inner Tail Lamp, Removing And Installing, Led: Installing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

Install In Reverse Order Of Removal. Note The Following:

Tightening specification. Refer to OVERVIEW - REAR LID TAIL LAMPS, LED .

NOTE:

Make sure the seal between the body and tail lamp housing seals correctly.

-- Position the inner tail lamp on the outer edge of the rear lid.

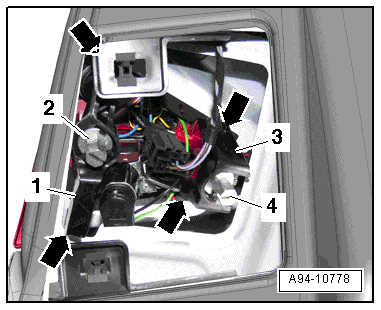

-- Slide the clamping bracket -3- onto the inner tail lamp threaded pins and install the nut -4- loosely.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Slide the large clamping bracket -1- onto the threaded pins on the inner tail lamp and tighten the nuts -2- and -4-.

NOTE:

When tightening the nuts, the clamping bracket wedges itself onto the rear lid -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Install In Reverse Order Of Removal. Note The Following:

Tightening specification. Refer to TIGHTENING SPECIFICATION AND SEQUENCE FOR THE INNER TAIL LAMP .

NOTE:

Make sure the seal between the body and tail lamp housing seals correctly.

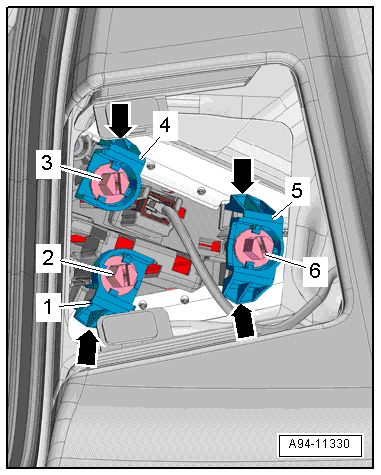

-- Slide the clamping brackets -1, 4, 5- onto the inner tail lamp threaded pins and turn the nuts -2, 3, 6- 3 turns.

-- Position the inner tail lamp on the outer edge of the rear lid so that the clamping bracket audibly engages.

-- Tighten the nuts. Refer to TIGHTENING SPECIFICATION AND SEQUENCE FOR THE INNER TAIL LAMP .

NOTE:

When tightening the nuts, the clamping bracket wedges itself onto the rear lid -arrows-.
