Bulb Socket, Removing And Installing, Led: Removing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

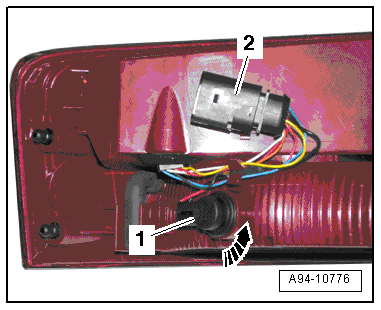

GWWA94-10776Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the outer tail lamp. Refer to OUTER TAIL LAMP, REMOVING AND INSTALLING, LED .

NOTE:

If it is not possible to turn the bulb socket in the right tail lamp assembly, remove the connector -2- from the bracket.

-- Turn the bulb socket -1- counterclockwise -arrow- and remove it from the tail lamp housing.

-- Remove the bulb from the bulb socket.
