Left/Right Back-Up Lamp Bulb 2 -M76- / -M77-, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Turn off the ignition and remove the key.

-- Turn the headlamp switch to "0".

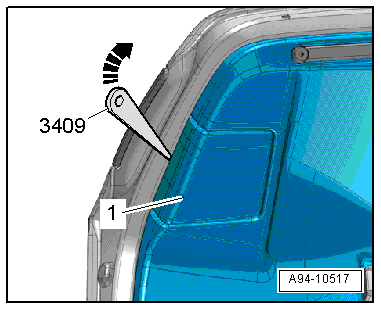

-- Pry off the cover -1- using the Trim Removal Wedge :3409 -arrow-.

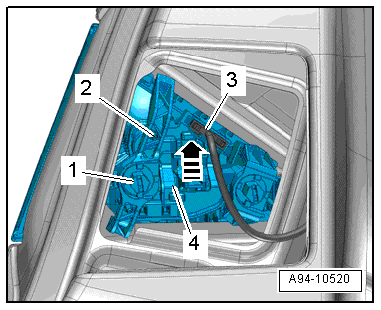

-- Disconnect the connector -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the nut -1- and the clamping bracket -2-.

-- Remove the bulb socket -4- from the housing by press the locking bracket upward -arrows-.

-- Remove the rear parking/fog lamp bulb from the socket.

-- Remove the back-up lamp bulb from the socket.
