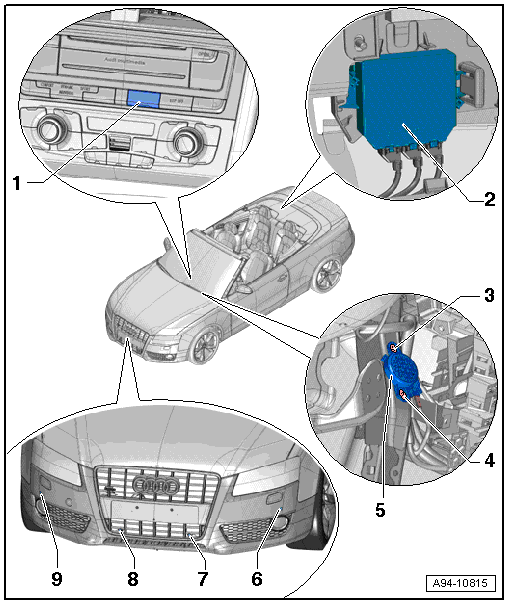

Front Parking Aid
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
- Parking Aid Button -E266-
- Only for 8-channel parking aid
- Component location. Refer to PARKING AID BUTTON -E266- COMPONENT LOCATION
- Parking Aid Control Module -J446-
- Depending on the version from MY 2012, USA from MY 2013, it is integrated in the Vehicle Electrical System Control Module -J519-.
- Removing and installing. Refer to PARKING AID CONTROL MODULE -J446-, REMOVING AND INSTALLING .
- Expanding Clip
- Expanding Clip
- Front Parking Aid Warning Buzzer -H22-
- Only for 8-channel parking aid
- Removing and installing. Refer to FRONT PARKING AID WARNING BUZZER -H22-, REMOVING AND INSTALLING .
- Left Front Parking Aid Sensor -G255-
- Removing and installing:
- Audi A5/S5 through MY 2012. Refer to RIGHT/LEFT FRONT PARKING AID SENSOR -G252- / -G253-, LEFT/RIGHT FRONT CENTER PARKING AID SENSOR -G254- / -G255-, REMOVING AND INSTALLING .
- Audi A5/S5 from MY 2013. Refer to RIGHT/LEFT FRONT PARKING AID SENSORS -G252- / -G253- / -G254- / -G255-, REMOVING AND INSTALLING
- Audi RS 5. Refer to FRONT PARKING AID SENSORS -G252- / -G253- / -G254- / -G255-, REMOVING AND INSTALLING
- Removing and installing:
- Left Front Center Parking Aid Sensor -G254-
- Removing and installing:
- Audi A5/S5 through MY 2012. Refer to RIGHT/LEFT FRONT PARKING AID SENSOR -G252- / -G253-, LEFT/RIGHT FRONT CENTER PARKING AID SENSOR -G254- / -G255-, REMOVING AND INSTALLING .
- Audi A5/S5 from MY 2013. Refer to RIGHT/LEFT FRONT PARKING AID SENSORS -G252- / -G253- / -G254- / -G255-, REMOVING AND INSTALLING
- Audi RS 5. Refer to FRONT PARKING AID SENSORS -G252- / -G253- / -G254- / -G255-, REMOVING AND INSTALLING
- Removing and installing:
- Right Front Center Parking Aid Sensor -G253-
- Removing and installing:
- Audi A5/S5 through MY 2012. Refer to RIGHT/LEFT FRONT PARKING AID SENSOR -G252- / -G253-, LEFT/RIGHT FRONT CENTER PARKING AID SENSOR -G254- / -G255-, REMOVING AND INSTALLING .
- Audi A5/S5 from MY 2013. Refer to RIGHT/LEFT FRONT PARKING AID SENSORS -G252- / -G253- / -G254- / -G255-, REMOVING AND INSTALLING
- Audi RS 5. Refer to FRONT PARKING AID SENSORS -G252- / -G253- / -G254- / -G255-, REMOVING AND INSTALLING
- Removing and installing:
- Right Front Parking Aid Sensor -G252-
- Removing and installing:
- Audi A5/S5 through MY 2012. Refer to RIGHT/LEFT FRONT PARKING AID SENSOR -G252- / -G253-, LEFT/RIGHT FRONT CENTER PARKING AID SENSOR -G254- / -G255-, REMOVING AND INSTALLING .
- Audi A5/S5 from MY 2013. Refer to RIGHT/LEFT FRONT PARKING AID SENSORS -G252- / -G253- / -G254- / -G255-, REMOVING AND INSTALLING
- Audi RS 5. Refer to FRONT PARKING AID SENSORS -G252- / -G253- / -G254- / -G255-, REMOVING AND INSTALLING
- Removing and installing:
