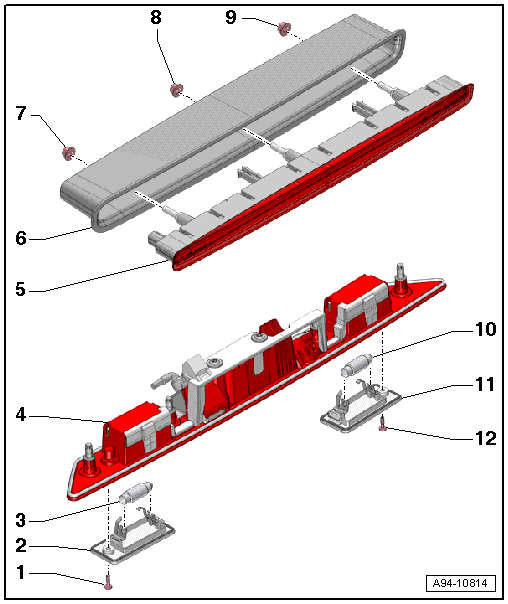

Overview - High-Mounted Brake Lamp: Notes
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- 1 Nm
- Left License Plate Lamp
- There are different versions.
- Removing and installing. Refer to LEFT/RIGHT LICENSE PLATE LAMP -X4- / -X5-, REMOVING AND INSTALLING .
- Left License Plate Lamp -X4-
- Depending on the date of manufacture
- 12 V, 5 W
- Bulb, replacing. Refer to LEFT/RIGHT LICENSE PLATE LAMP -X4- / -X5-, REMOVING AND INSTALLING .
- Grip Piece
- High-Mounted Brake Lamp
- With High-Mounted Brake Lamp Bulb -M25-
- Removing and installing. Refer to HIGH-MOUNTED BRAKE LAMP BULB, REMOVING AND INSTALLING .
- Mount
- For High-Mounted Brake Lamp Bulb -M25-
- Nut
- Tightening specification and sequence. Refer to HIGH-MOUNTED BRAKE LAMP BULBM25 TIGHTENING SPECIFICATION AND SEQUENCE
- Nut
- Tightening specification and sequence. Refer to HIGH-MOUNTED BRAKE LAMP BULBM25 TIGHTENING SPECIFICATION AND SEQUENCE
- Nut
- Tightening specification and sequence. Refer to HIGH-MOUNTED BRAKE LAMP BULBM25 TIGHTENING SPECIFICATION AND SEQUENCE
- Right License Plate Lamp -X5-
- Depending on the date of manufacture
- 12 V, 5 W
- Bulb, replacing. Refer to LEFT/RIGHT LICENSE PLATE LAMP -X4- / -X5-, REMOVING AND INSTALLING .
- Right License Plate Lamp
- There are different versions.
- Removing and installing. Refer to LEFT/RIGHT LICENSE PLATE LAMP -X4- / -X5-, REMOVING AND INSTALLING .
- Screw
- 1 Nm
