High-Mounted Brake Lamp Bulb, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

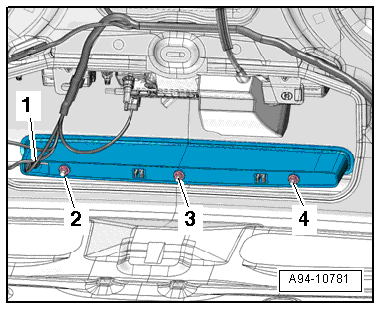

-- Do not press brake pedal.

-- Remove The Rear Lid Trim Panel. Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING .

-- Disconnect the connector -1-.

-- Remove the nuts -arrows-.

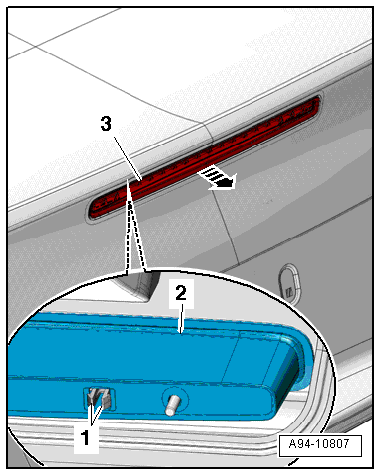

-- Open the clips -1- and remove the mount -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Push the lamp -3- out of the flap -arrow-.
