Upper Headlamp Housing Mount, Removing And Installing : Removing
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

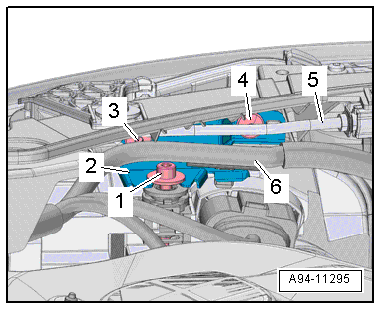

-- Left: Free up the wiring harness -6-.
-- Disengage The Rear Latch Cable -5- At The Cable Coupling. Refer to OVERVIEW - RELEASE CABLE .
-- Remove the bolts -1, 3 and 4-.
-- Remove the mount -2- toward the rear.
