Overview - Hid Headlamp (Through My 2011): Notes
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Headlamps must be adjusted after performing measures that could influence Headlamp Adjustment. Refer to HID HEADLAMP, ADJUSTING [XXXX] .

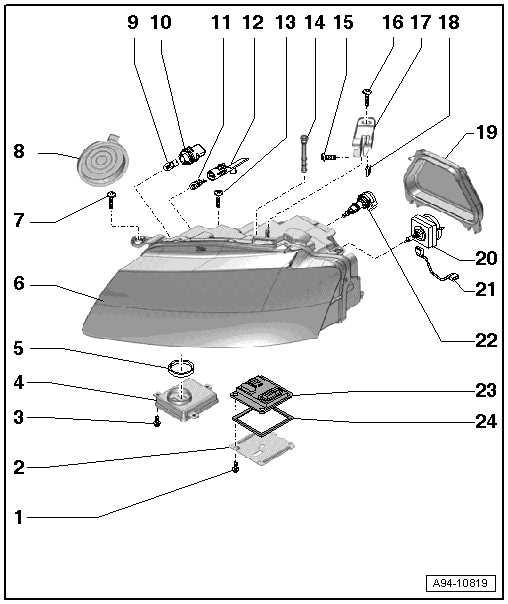

- Screw
- 1.4 Nm
- Retaining Plate
- Removing and installing. Refer to LEFT/RIGHT HEADLAMP POWER OUTPUT STAGE -J667- / -J668-, REMOVING AND INSTALLING, HID HEADLAMPS THROUGH MY 2011 .
- Screw
- 1.4 Nm
- HID Headlamp Control Module
- Left HID Headlamp Control Module -J343-
- Right HID Headlamp Control Module -J344-
- Removing and installing. Refer to LEFT/RIGHT HID HEADLAMP CONTROL MODULE -J343- / -J344-, REMOVING AND INSTALLING, HID HEADLAMPS THROUGH MY 2011 .
- Seal
- Headlamp Housing
- Removing and installing. Refer to HEADLAMP, REMOVING AND INSTALLING, HID HEADLAMPS .
- Screw
- 4.5 Nm
- Housing Cover
- For the front turn signal/parking lamp
- Front Turn Signal Bulb
- Left Front Turn Signal Bulb -M5-
- Right Front Turn Signal Bulb -M7-
- 12 V, 21 W (H21W)
- Bulb, replacing. Refer to LEFT/RIGHT FRONT TURN SIGNAL BULB -M5- / -M7-, REMOVING AND INSTALLING, HID HEADLAMPS .
- Lamp Socket
- For the front turn signal lamp
- Parking Lamp Bulb
- Left Parking Lamp Bulb -M43-
- Right Parking Lamp Bulb -M44-
- Glass base bulb 12 V, 5 W
- Bulb, replacing. Refer to LEFT/RIGHT PARKING LAMP BULB -M43- / -M44-, REMOVING AND INSTALLING, HID HEADLAMP THROUGH MY 2011 .
- Lamp Socket
- For the parking lamp bulb
- Bolt
- 4.5 Nm
- Adjustment Screw
- For headlamp height adjustment
- Bolt
- 4.5 Nm
- Bolt
- 4.5 Nm
- Headlamp Housing Bracket
- Spring Nut
- Housing Cover
- For HID headlamp bulb
- HID Headlamp Bulb
- With integrated ignition coil
- Left HID Headlamp Bulb -L13-
- Right HID Headlamp Bulb -L14-
- 42 V, 35 W (D3S)
- Bulb, replacing. Refer to LEFT/RIGHT HID HEADLAMP BULB -L13- / -L14-, REMOVING AND INSTALLING, HID HEADLAMPS THROUGH MY 2011 .
- Adapter Wire
- For HID headlamp bulb
- Not available as a replacement part
- Headlamp Beam Adjustment Motor
- Left Headlamp Beam Adjustment Motor -V48-
- Right Headlamp Beam Adjustment Motor -V49-
- Removing and installing. Refer to LEFT/RIGHT HEADLAMP BEAM ADJUSTMENT MOTOR -V48- / -V49-, REMOVING AND INSTALLING, HID HEADLAMPS THROUGH MY 2011 .
- Headlamp Power Output Stages
- Only for vehicles with cornering lamps
- Left Headlamp Power Output Stage -J667-
- Right Headlamp Power Output Stage -J668-
- Removing and installing. Refer to LEFT/RIGHT HEADLAMP POWER OUTPUT STAGE -J667- / -J668-, REMOVING AND INSTALLING, HID HEADLAMPS THROUGH MY 2011 .
- Seal
