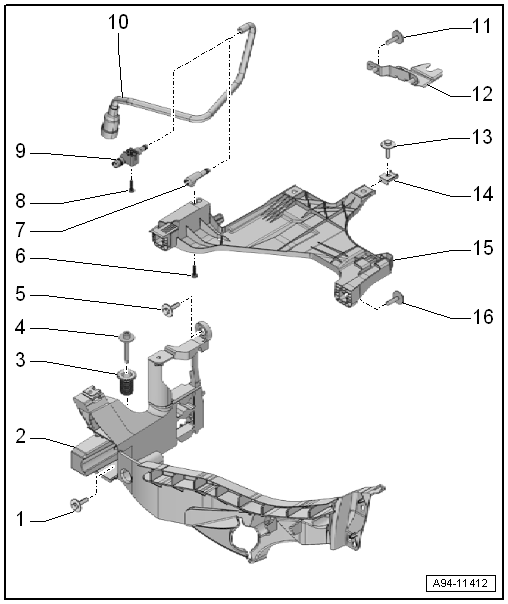

Overview - Headlamp Housing Mount (Through My 2013)
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- 8 Nm
- Bracket
- For the headlamp housing mount
- Removing and installing. Refer to HEADLAMP HOUSING MOUNT BRACKET, REMOVING AND INSTALLING .
- Adjusting Nut
- For adjusting the front bumper cover to the body contour
- Bolt
- 8 Nm
- Bolt
- 8 Nm
- Bolt
- 1 Nm
- Mount
- For ventilation hose
- There are different versions.
- For attaching to the headlamp housing mount
- Bolt
- 1 Nm
- Mount
- For ventilation hose
- There are different versions.
- For attaching to the headlamp housing
- Ventilation Hose
- For the headlamp housing
- Bolt
- 4.5 Nm
- Quantity: 2
- Upper mount
- For the headlamp housing
- Removing and installing. Refer to UPPER HEADLAMP HOUSING MOUNT, REMOVING AND INSTALLING .
- Bolt
- Quantity: 2
- 4.5 Nm
- Spring Nut
- Quantity: 2
- Mount
- For the headlamp housing
- There are different versions.
- Removing and installing. Refer to HEADLAMP HOUSING MOUNT, REMOVING AND INSTALLING .
- Bolt
- 4.5 Nm
- Quantity: 2
