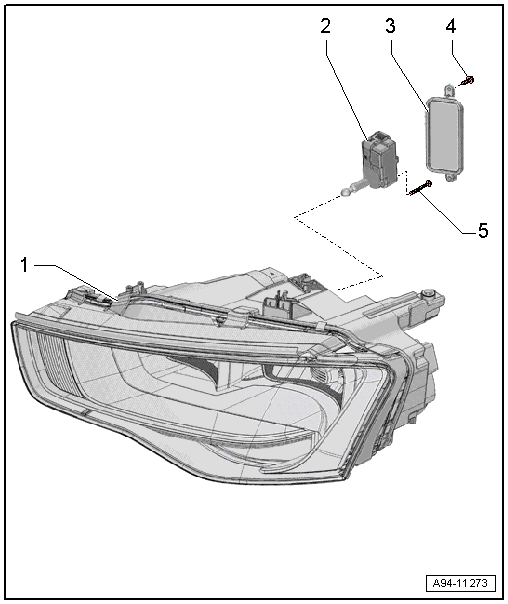

Part 2 - Repair Kit
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
- Headlamp Housing
- Removing and installing. Refer to HEADLAMP, REMOVING AND INSTALLING, HALOGEN HEADLAMP .
- Headlamp Beam Adjustment Motor
- Left Headlamp Beam Adjustment Motor -V48-
- Right Headlamp Beam Adjustment Motor -V49-
- Removing and installing. Refer to LEFT/RIGHT HEADLAMP BEAM ADJUSTMENT MOTOR -V48- / -V49-, REMOVING AND INSTALLING, HALOGEN HEADLAMPS .
- Headlamp Beam Adjustment Motor Housing Cover
- The headlamp housing must be cut open to replace the adjustment motor
- A housing cover can be ordered to seal the assembly opening.
- Removing and installing. Refer to LEFT/RIGHT HEADLAMP BEAM ADJUSTMENT MOTOR -V48- / -V49-, REMOVING AND INSTALLING, HALOGEN HEADLAMPS .
- Bolt
- 2 Nm
- From the repair kit for the headlamp range control adjustment motor cover
- Quantity: 2
- Bolt
- 1.4 Nm
- Quantity: 2
