Overview - Halogen Headlamp (Through My 2012): Notes

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

Headlamps must be adjusted after performing measures that could influence Headlamp Adjustment. Refer to HALOGEN HEADLAMP, ADJUSTING [XXXX] .

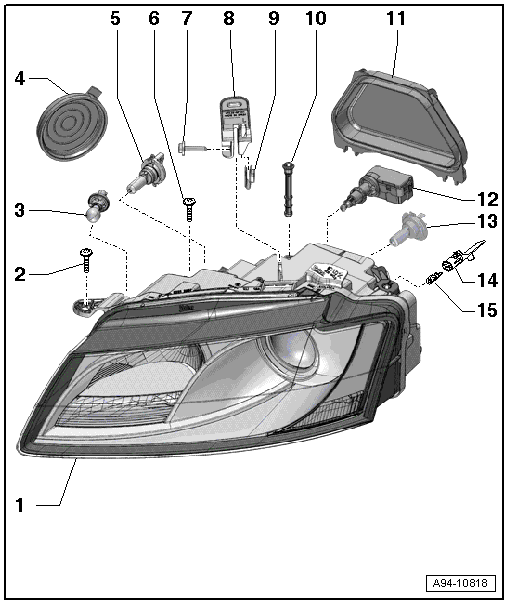

Fig 1: Exploded View Of Halogen Headlamp (Through MY 2012)
GWWA94-10818Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Headlamp Housing
  2. Bolt
    • 4.5 Nm
  3. Front Turn Signal Bulb
  4. Housing Cover
    • For the front turn signal and high beam/daytime running lamp
  5. Daytime Running Lamps/High Beam Headlamp
  6. Bolt
    • 4.5 Nm
  7. Bolt
    • 4.5 Nm
  8. Headlamp Housing Bracket
  9. Spring Nut
  10. Adjustment Screw
    • For headlamp height adjustment
  11. Housing Cover
    • For the low beam headlamp/parking lamp/side marker lamp
  12. Headlamp Beam Adjustment Motor
  13. Low Beam Headlamp Bulb
  14. Lamp Socket
    • For the parking lamp/front side marker lamp bulb
  15. Parking Lamp/Front Side Marker Lamp Bulb
