Left/Right Low Beam Headlamp Bulb -M29- / -M31-, Removing And Installing, Halogen Headlamps : Removing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the headlamp housing. Refer to HEADLAMP, REMOVING AND INSTALLING, HALOGEN HEADLAMP .

-- Release spring clip -arrow- and remove low beam/daytime running light bulb housing cover -1- from headlamp housing.

-- Turn the socket -1- counterclockwise -arrow- and remove it from the housing.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pull the bulb -2- out of the socket.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- On The Right: Remove The Air Filter Housing. Refer to AIR FILTER [CCBA, CGXC, CTUB] / AIR FILTER [CAEB, CPMA] / AIR FILTER HOUSING, REMOVING AND INSTALLING [CAED, CAEB, CPMB, CPMA] or AIR FILTER OVERVIEW [CCBA, CGXC, CTUB] / AIR FILTER OVERVIEW [CCBA, CGXC, CTUB] / AIR FILTER OVERVIEW [CAEB, CPMA] .

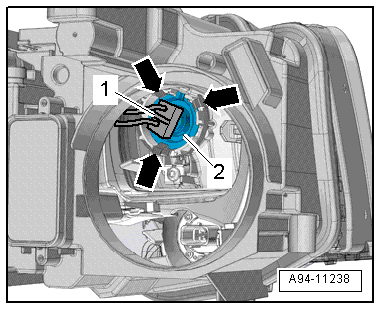

-- Remove the housing cover -1- from the headlamp housing -arrow-.

-- Remove the bulb -2- from the spring clips -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector -1- from the bulb.
