Left/Right Position Lamp Bulb -M1- / -M3-, Removing And Installing, Halogen Headlamps: Removing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the headlamp housing. Refer to HEADLAMP, REMOVING AND INSTALLING, HALOGEN HEADLAMP .

-- Release the wire clamp -arrow- and remove the low beam/daytime running lamp bulb housing cover -1- from the headlamp housing.

-- Remove the light bulb and socket -1- from the reflector -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the parking lamp/front side marker lamp bulb -2- from the socket.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- On The Right: Remove The Air Filter Housing. Refer to AIR FILTER [CCBA, CGXC, CTUB] / AIR FILTER [CAEB, CPMA] / AIR FILTER HOUSING, REMOVING AND INSTALLING [CAED, CAEB, CPMB, CPMA] or AIR FILTER OVERVIEW [CCBA, CGXC, CTUB] / AIR FILTER OVERVIEW [CCBA, CGXC, CTUB] / AIR FILTER OVERVIEW [CAEB, CPMA] .

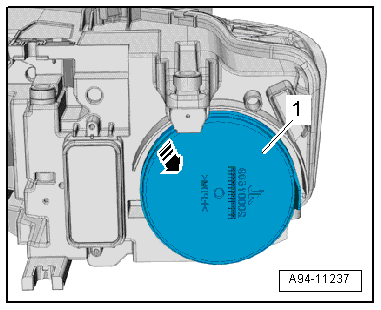

-- Remove the housing cover -1- from the headlamp housing -arrow-.

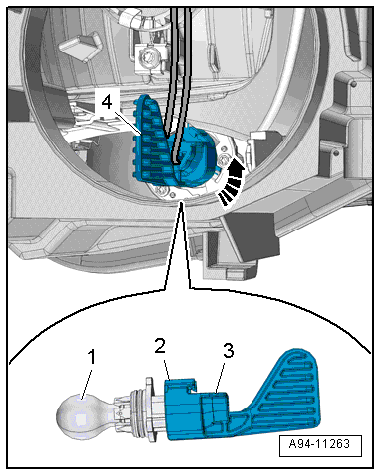

-- Turn the socket -4- counterclockwise -arrow- and remove it from the housing.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release the clip -3- and remove the connector -2- from the bulb socket -1- with the bulb.
