Left/Right Parking Lamp Bulb -M43- / -M44-, Removing And Installing, Hid Headlamp : Removing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the headlamp housing. Refer to HEADLAMP, REMOVING AND INSTALLING, HID HEADLAMP .

-- Remove the turn signal/parking lamp housing cover -1- from the headlamp housing -arrow-.

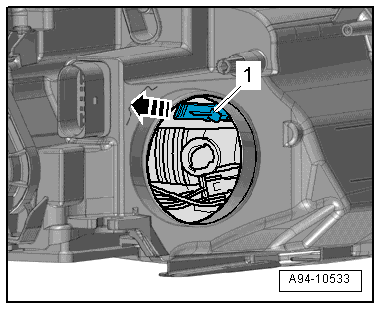

-- Turn the turn signal socket -1- counterclockwise -arrow- and remove it from the housing.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pull the socket -1- with the bulb out of the reflector in the direction of the -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove Parking Lamp from socket.
