Left/Right Hid Headlamp Bulb -L13- / -L14-, Removing And Installing, Hid Headlamps : Removing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the headlamp housing. Refer to HEADLAMP, REMOVING AND INSTALLING, HID HEADLAMP .

-- Release spring clip -arrow- and remove gas discharge lamp housing cover -1- from headlamp housing.

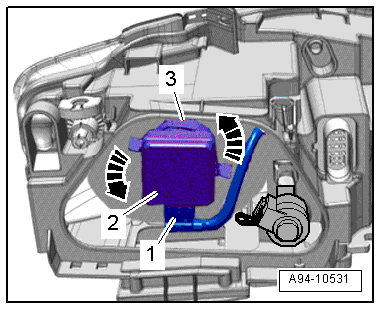

-- Disconnect the connector -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Turn the locking ring -3- in the direction of the -arrow- and remove the HID bulb -2-.

-- Audi A5 on the right: remove the air filter housing. Refer to AIR FILTER [CCBA, CGXC, CTUB] / AIR FILTER [CAEB, CPMA] / AIR FILTER HOUSING, REMOVING AND INSTALLING [CAED, CAEB, CPMB, CPMA] or AIR FILTER OVERVIEW [CCBA, CGXC, CTUB] / AIR FILTER OVERVIEW [CCBA, CGXC, CTUB] / AIR FILTER OVERVIEW [CAEB, CPMA] .

-- Audi RS 5 on the right side: Disconnect the connector -3- on the Engine Coolant Level Warning Switch -F66-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the nut -2- and then remove the coolant expansion tank and lay it aside with the coolant hoses -1 and 4- connected.

-- Remove the housing cover -1- from the headlamp housing -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Rotate the HID bulb -2- in the direction of the -arrow- and remove it from the housing.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector -1-.
