Left/Right Front Turn Signal Bulb -M5- / -M7-, Removing And Installing, Hid Headlamps: Removing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the headlamp housing. Refer to HEADLAMP, REMOVING AND INSTALLING, HID HEADLAMPS .

-- Remove the turn signal/parking lamp housing cover -1- from the headlamp housing -arrow-.

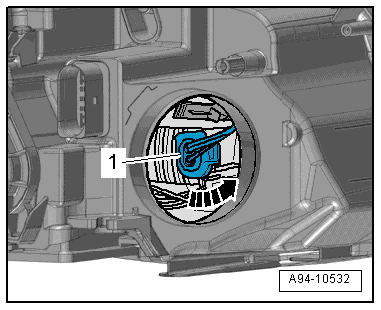

-- Turn the socket -1- counterclockwise -arrow- and remove it from the housing.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bulb -2- from the socket -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the headlamp housing. Refer to HEADLAMP, REMOVING AND INSTALLING, HID HEADLAMP .

-- Remove the turn signal/parking lamp housing cover -1- from the headlamp housing -arrow-.

-- Turn the socket -1- counterclockwise -arrow- and remove it from the housing.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bulb -2- from the socket -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Audi A5 on the right: remove the air filter housing. Refer to AIR FILTER [CCBA, CGXC, CTUB] / AIR FILTER [CAEB, CPMA] / AIR FILTER HOUSING, REMOVING AND INSTALLING [CAED, CAEB, CPMB, CPMA] or AIR FILTER OVERVIEW [CCBA, CGXC, CTUB] / AIR FILTER OVERVIEW [CCBA, CGXC, CTUB] / AIR FILTER OVERVIEW [CAEB, CPMA] .

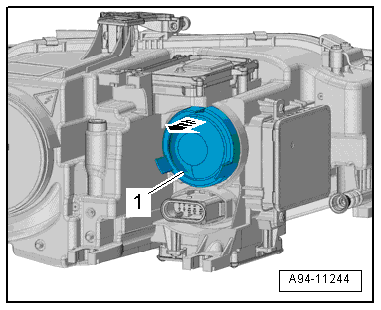

-- Remove the housing cover -1- from the headlamp housing -arrow-.

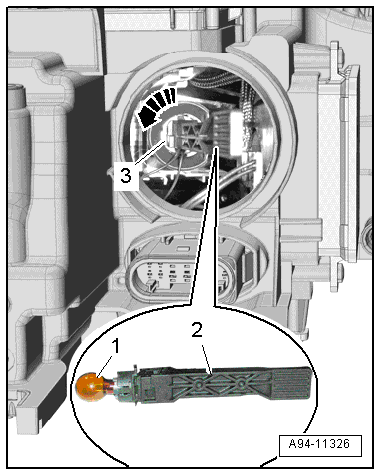

-- Turn socket -3- counterclockwise -arrow- and remove from housing.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove bulb -1- from socket -2-.
