Left/Right Front Turn Signal Bulb -M5- / -M7-, Removing And Installing, Halogen Headlamps: Removing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the headlamp housing. Refer to HEADLAMP, REMOVING AND INSTALLING, HALOGEN HEADLAMP .

-- Remove the high beam housing cover -1- from the headlamp housing -arrow-.

-- Turn the bulb -1- counterclockwise -arrow- and remove it from the housing.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release the spring -3- and disconnect the connector -2- on the bulb.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- On The Right: Remove The Air Filter Housing. Refer to AIR FILTER OVERVIEW [CCBA, CGXC, CTUB] / AIR FILTER OVERVIEW [CCBA, CGXC, CTUB] / AIR FILTER OVERVIEW [CAEB, CPMA] or AIR FILTER [CCBA, CGXC, CTUB] / AIR FILTER [CAEB, CPMA] / AIR FILTER HOUSING, REMOVING AND INSTALLING [CAED, CAEB, CPMB, CPMA] .

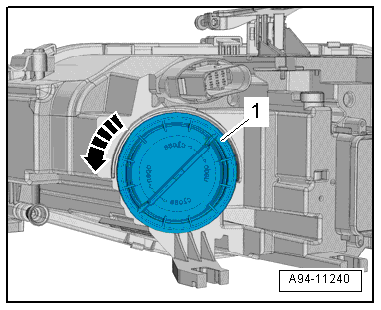

-- Turn the housing cover -1- counterclockwise -arrow- and remove it from the headlamp housing.

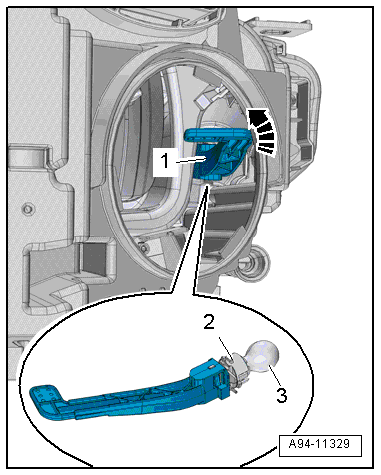

-- Release the bulb -1- : left, turn counter-clockwise -arrow- ; right, turn clockwise.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bulb from the housing.

-- Remove the bulb -3- from the bulb socket -2-.
