Left/Right Daytime Running Lamp And Position Lamp Control Module -J860- / -J861-, Removing And Installing, Hid Headlamps : Removing
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the headlamp housing. Refer to HEADLAMP, REMOVING AND INSTALLING, HID HEADLAMP .

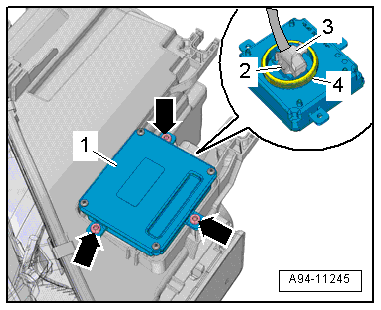

-- Remove the bolts -arrows-.
-- Remove the control module -1- from the headlamp housing.
-- Press the release -2- button and disconnect the connector -3-.
-- Remove the control module.
