Headlamp, Removing And Installing, Halogen Headlamp: Installing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Tightening specification. Refer to OVERVIEW - HALOGEN HEADLAMP .

Install In Reverse Order Of Removal. Note The Following:

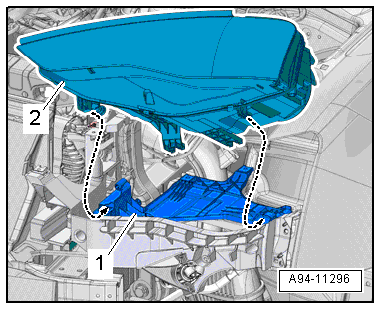

-- When inserting the headlamp -2- into the mount -1-, make sure the guide tracks on the headlamp engage in the guides on the mount -arrows-.

Headlamp must slide gently into mount and without using force.

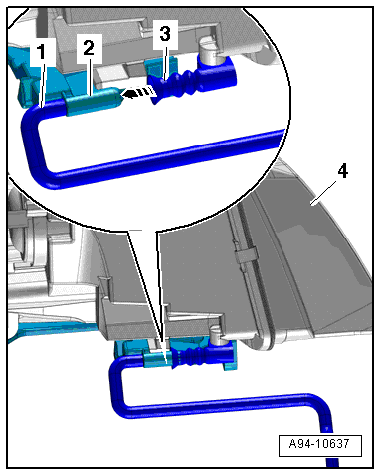

-- When sliding the headlamp -4- in, make sure the headlamp ventilation -3- slides evenly into the mount -2- for the ventilation hose -1- -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

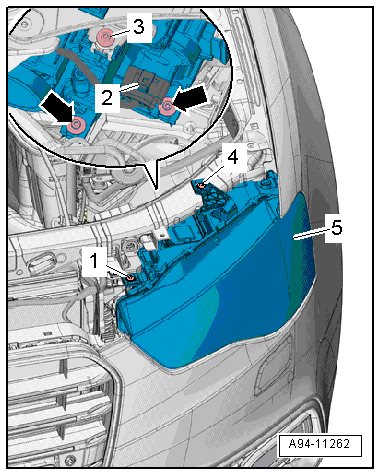

-- Tighten the bolts -1, 3 and 4- and -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the front bumper cover. Refer to FRONT BUMPER COVER, REMOVING AND INSTALLING .
