Inner Headlamp Housing Bracket, Removing And Installing, Halogen Headlamps: Removing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

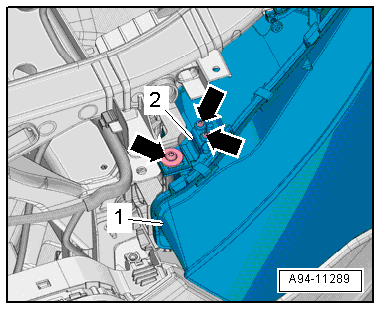

GWWA94-11289Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the lock carrier cover. Refer to LOCK CARRIER COVER, REMOVING AND INSTALLING .

-- Remove the bolts -arrows-.

-- Remove the bracket -2- upward from the headlamp housing -1-.
