Left/Right Front Fog Lamp Bulb - L22- / -L23-, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Loosen the front wheel housing liner in the front area. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .

-- Disconnect the connector -1- from the bulb.

-- Remove the vent hose -3- on the left side of the fog lamp.

-- Rotate the bulb -2- counterclockwise -arrow- and remove it from the fog lamp housing.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

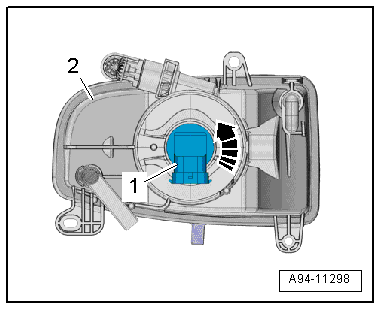

-- Remove the fog lamp. Refer to FOG LAMP, REMOVING AND INSTALLING .

-- Rotate the bulb -1- counterclockwise -arrow- and remove it from the fog lamp housing -2-.
