Fog Lamp, Adjusting: Procedure
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
-- The vehicle must be standing on a flat surface.
-- Turn the headlamp switch to "low beam" - not "Auto".
-- Pull the headlamp switch to "fog lamp".
-- During the program, you will be asked to perform a Headlamp Adjustment.
Headlamp Adjustment

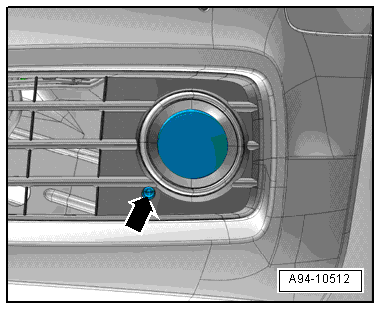

-- To adjust headlamp range, turn the adjusting screw -arrow-.
- Angle dimension: 2%
NOTE:
The percentage indicator is based on a 10 meter projection distance. At an angle dimension of 2.0%, for example, converts to 20 cm.
Side Adjustment Is Not Intended.
