Rear Three-Point Seat Belt, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

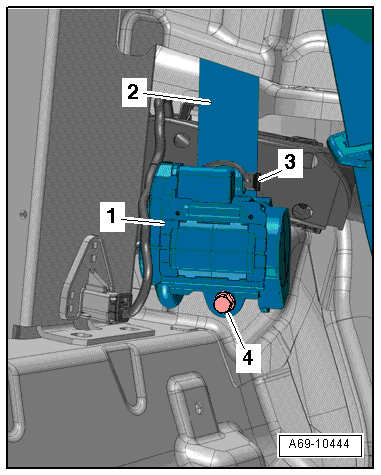

Fig 1: Identifying Rear Three-Point Seat Belt Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the side trim panel. Refer to SIDE TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the rear belt end fitting. Refer to REAR OUTER BELT END FITTING, REMOVING AND INSTALLING .

Rear seat belt tensioner igniter:

WARNING:

Follow all safety precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS .
Follow all regulations when disposing of pyrotechnic components. Refer to AIRBAG, BELT TENSIONER AND BATTERY CUT-OUT UNITS, STORING, TRANSPORTING AND DISPOSING (PYROTECHNIC COMPONENTS) .

-- Switch the ignition on.

-- Disconnect the battery ground cable with the ignition turned on. Refer to BATTERY .

WARNING:

Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". For example, this can be done by briefly touching the door striker.

-- Disconnect the connector -3-.

-- To do this, release the connector lock -3- using a small screwdriver -1- and remove the connector -2-.

Fig 2: Identifying Releasing Connector Lock

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Continuation for All Vehicles:

Fig 3: Identifying Rear Three-Point Seat Belt Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -4-.

-- Thread the seat belt webbing -2- downward and remove the three-point seat belt -1-.
