Rear Seat Belt Latch, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

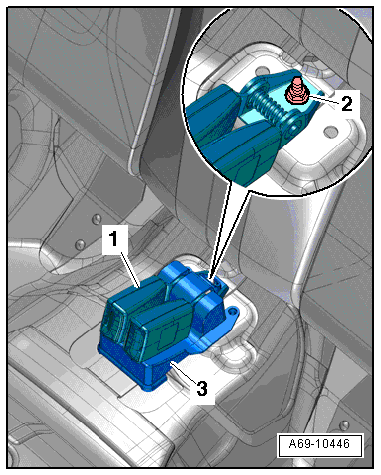

Fig 1: Identifying Rear Belt Latch Components
GWWA69-10446Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bench seat. Refer to BENCH SEAT/SINGLE SEAT, REMOVING AND INSTALLING .

-- Disengage the seat belt latch cover -3- and remove it.

-- Remove the nut -2- and the rear seat belt latch -1-.
