Rear Seat Belt Guide, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

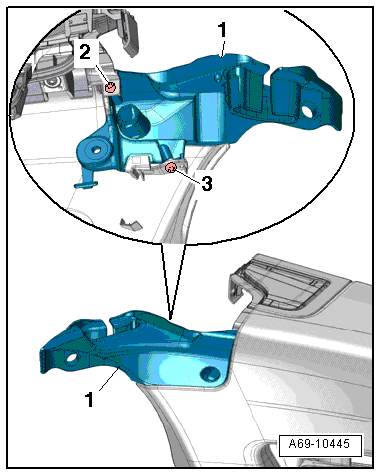

Fig 1: Identifying Rear Belt Guide Components
GWWA69-10445Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the side trim panel. Refer to SIDE TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the screws -2- and -3- on the back of the side trim panel and remove the seat belt guide -1-.
