Left/Right Seat Belt Positioning Motor -V413- / -V414-, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

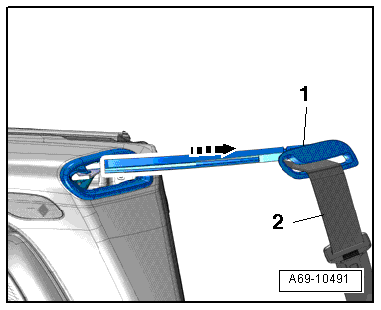

Fig 1: Removing Seat Belt Positioning Arm

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the front belt end fitting. Refer to FRONT BELT END FITTING, REMOVING AND INSTALLING .

-- Pull the seat belt positioning arm -1- out of the seat belt positioning motor -arrow-.

-- Thread the seat belt webbing -2- together with the belt tongue out of the seat belt positioning arm.

-- Remove the side trim panel. Refer to SIDE TRIM PANEL, REMOVING AND INSTALLING .

-- Disconnect the connector -5-.

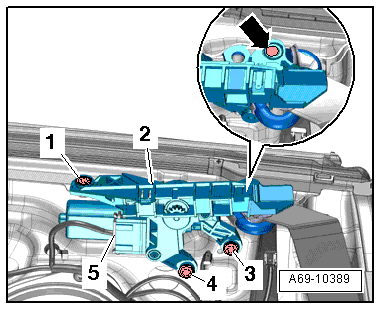

Fig 2: Identifying Seat Belt Positioning Motor Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -1, 3 and 4-.

-- Remove the seat belt positioning motor -2- on the seat belt relay -arrow-.
