Front Three-Point Seat Belt, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Follow all safety precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS .
Follow all regulations when disposing of pyrotechnic components. Refer to AIRBAG, BELT TENSIONER AND BATTERY CUT-OUT UNITS, STORING, TRANSPORTING AND DISPOSING (PYROTECHNIC COMPONENTS) .

-- Switch the ignition on.

-- Disconnect the battery ground cable with the ignition turned on. Refer to BATTERY .

-- Remove the front belt end fitting. Refer to FRONT BELT END FITTING, REMOVING AND INSTALLING .

-- Remove the side trim panel. Refer to SIDE TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the seat belt positioning motor. Refer to LEFT/RIGHT SEAT BELT POSITIONING MOTOR -V413- / -V414-, REMOVING AND INSTALLING .

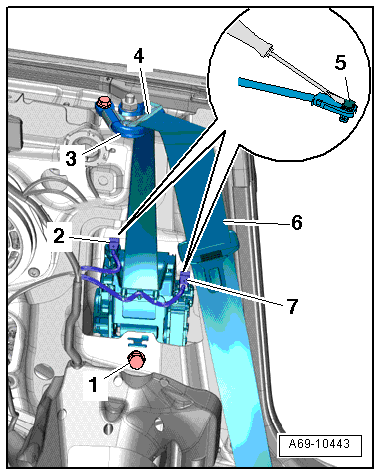

Fig 1: Identifying Front Three-Point Seat Belt With Belt Tensioner Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

WARNING:

Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". For example, this can be done by briefly touching the door striker.

-- Release the connector lock -5- with a small screwdriver and disconnect the seat belt force limiter -2- and seat belt tensioner igniter 1 -7- connectors.

-- Unclip the seat belt guide -4- and thread the seat belt webbing -6- with the belt tongue on the seat belt relay -3-.

-- Remove the bolt -1- and the seat belt tensioner from the mount.
