Front Seat Belt Guide, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the front belt end fitting. Refer to FRONT BELT END FITTING, REMOVING AND INSTALLING .
-- Remove the side trim panel. Refer to SIDE TRIM PANEL, REMOVING AND INSTALLING .
-- Remove the seat belt positioning motor. Refer to LEFT/RIGHT SEAT BELT POSITIONING MOTOR -V413- / -V414-, REMOVING AND INSTALLING .

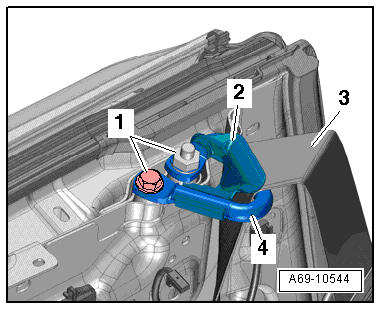

-- Unclip the seat belt guide -2- and thread the seat belt webbing -3- with the belt tongue on the seat belt relay -4-.
-- Remove the bolts -1- and remove the seat belt relay.
