Release Cable, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the rear seat backrest lock. Refer to REAR SEAT BACKREST LOCK, REMOVING AND INSTALLING .

-- Remove the rear seat backrest release lever. Refer to REAR SEAT BACKREST LOCKING MECHANISM, REMOVING AND INSTALLING .

-- Remove the luggage compartment side trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the guide rail screws -3 and 4-.

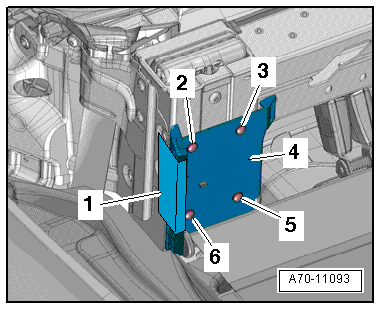

Fig 1: Removing Fleece -1- On Guide Rails

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Push The Variable Convertible Top Compartment Enclosure Slightly Downward And Remove The Screw -3- From The Inside Of The Convertible Top Compartment.

-- Remove the release cable -1- from the brackets -arrows-.

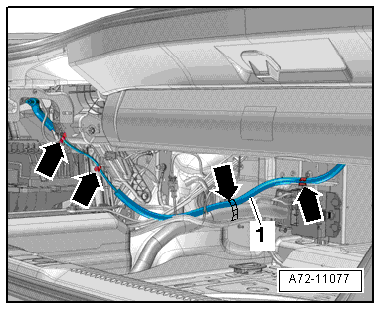

Fig 2: Removing Cable -1- From Brackets -Arrows

Courtesy of AUDI OF AMERICA, LLC
