Rear Seat Backrest Locking Mechanism, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

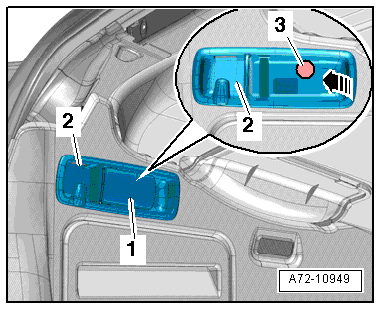

Fig 1: Removing Rear Seat Backrest Release Lever

Courtesy of AUDI OF AMERICA, LLC

-- Pull the lever -1- and unlock the rear seat backrest.

-- Keep the lever pulled and remove the expanding rivet -3- with a screwdriver.

-- Pry out the release lever -2- using the :3409 -arrow- and remove it.

-- Unclip the release cable -2- from the rear seat backrest release lever -1-.

Fig 2: Unclipping Release Cable -2- From Rear Seat Backrest Release Lever -1

Courtesy of AUDI OF AMERICA, LLC

-- Disengage the release cable ball stud -3- and remove the release lever.
