Rear Seat Backrest Lock, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
-- Tilt the front seat backrests as far forward as possible.
-- Move the front seats as far forward as possible.
-- Release the rear seat backrest and fold it forward.

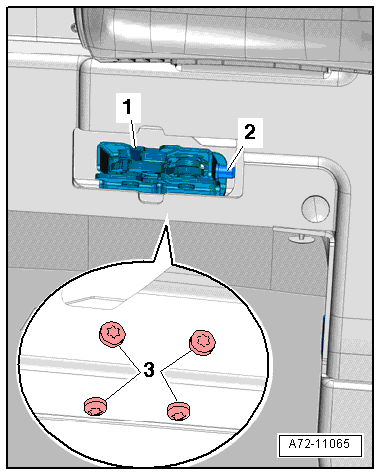

-- Remove the screws -3- for the rear seat backrest lock -1-.
-- Remove the rear seat backrest lock and disengage the release cable -2- on the cable bracket.
