Center Storage Compartment, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Bench Seat With Center Storage Compartment

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bench seat. Refer to BENCH SEAT/SINGLE SEAT, REMOVING AND INSTALLING .

-- Remove the molding -2- on both sides of the center storage compartment -1- mount -arrow-.

-- Remove the bolts -1 and 3-.

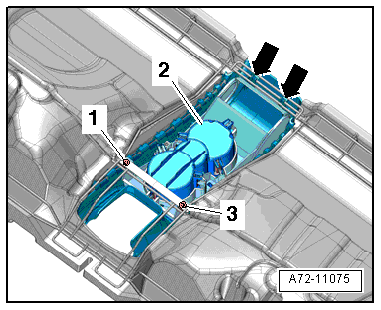

Fig 2: Removing Center Storage Compartment -2- On Seat Frame -Arrows

Courtesy of AUDI OF AMERICA, LLC

-- Remove the center storage compartment -2- on the seat frame -arrows-.

-- Remove the center storage compartment from the seat frame.
