Bench Seat/Single Seat, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

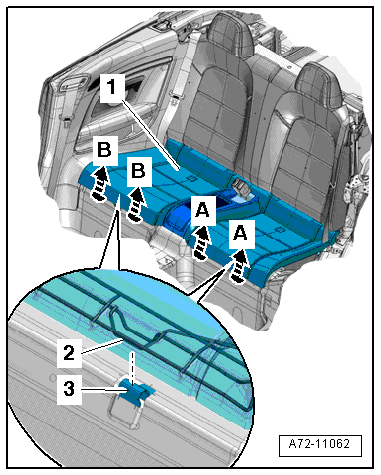

Fig 1: Removing Bench Seat

Courtesy of AUDI OF AMERICA, LLC

-- Tilt the front seat backrests as far forward as possible.

-- Move the front seats as far forward as possible.

-- Reach under the seat frame with both hands on one side of the seat.

-- Pull the bench seat -1- up forcefully with both hands -A arrows- so the seat frame -2- on the bench seat disengages from the mounting -3-.

-- Repeat the procedure on the other side of the bench seat -arrows B-.

-- Vehicles with seat heating: disconnect the seat heating connector

-- Remove the bench seat from the vehicle.
