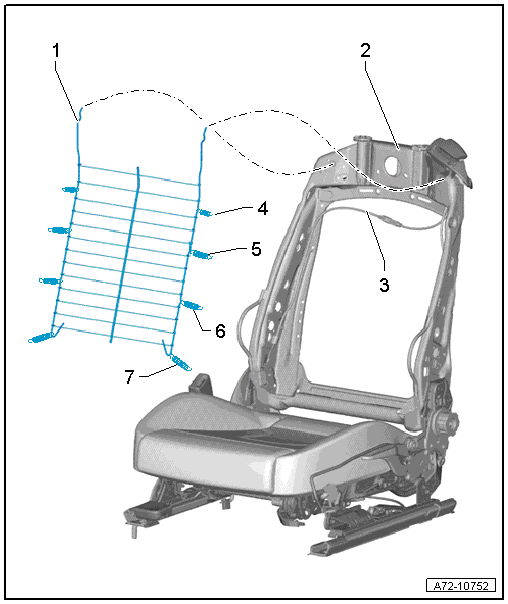

Overview - Spring Mat
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
- Spring Mat
- Removing and Installing. Refer to SPRING MAT, REMOVING AND INSTALLING .
- Can be removed and installed with and without the tension springs
- Backrest Frame
- Release Cable
- For entry assistance
- Top Spring
- Not available separately.
- Center Spring
- Not available separately.
- Bottom Spring
- Not available separately.
