Overview - Sill And Tunnel Side Trim, Manual Standard Seat

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

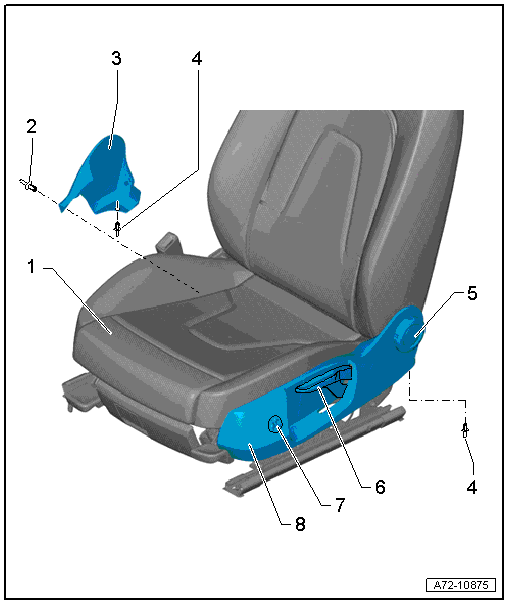

Fig 1: Exploded View Of Standard Seat/Sport Seat (Manual)

Courtesy of AUDI OF AMERICA, LLC

Front Seat
Expanding Rivet
Tunnel-Side Trim
- Can be replaced only when the seat is removed
- Removing and Installing. Refer to TUNNEL-SIDE TRIM, REMOVING AND INSTALLING, STANDARD SEAT, SPORT SEAT, SUPER SPORT SEAT .
Expanding Rivet
- Quantity: 2
Backrest Adjustment Wheel
- Removing and Installing. Refer to BACKREST ADJUSTER, REMOVING AND INSTALLING .
Seat Height Adjustment Handle
- Removing and Installing. Refer to SEAT HEIGHT ADJUSTMENT HANDLE, REMOVING AND INSTALLING, MANUAL STANDARD SEAT/SPORT SEAT .
Lumbar Support Adjustment Switch
- Equipped on some models
- Driver side: Driver Seat Lumbar Support Adjustment Switch -E176-
- Front passenger side: Front Passenger Seat Lumbar Support Adjustment Switch -E177-
- Overview. Refer to OVERVIEW - LUMBAR SUPPORT ADJUSTMENT SWITCH .
- Removing and Installing. Refer to DRIVER/FRONT PASSENGER SEAT LUMBAR SUPPORT ADJUSTMENT SWITCH -E176- / -E177-, REMOVING AND INSTALLING, STANDARD SEAT, SPORT SEAT, COMFORT SEAT .
Sill-Side Trim
- Can be replaced when seat is installed
- Removing and Installing. Refer to SILL-SIDE TRIM, REMOVING AND INSTALLING, MANUAL STANDARD/SPORT SEATS .
