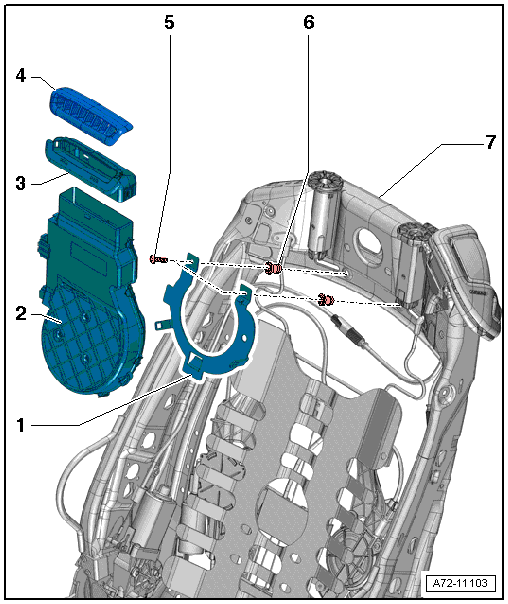

Overview - Neck Heating
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
- Bracket
- For neck heating blower
- Removing and Installing. Refer to NECK HEATING BLOWER BRACKET, REMOVING AND INSTALLING .
- Neck Heating Blower
- Driver side: Left Neck Heating Fan -V450-
- Front passenger side: Right Neck Heating Fan -V451-
- Removing and Installing. Refer to LEFT AND RIGHT NECK HEATING FAN .
- Connecting Piece
- Neck Heating Vent
- Removing and Installing. Refer to NECK HEATING VENTS, REMOVING AND INSTALLING .
- Bolt
- 3.5 Nm
- Quantity: 2
- Rubber Bushing
- With a washer and a threaded nut
- Quantity: 2
- Backrest Frame
