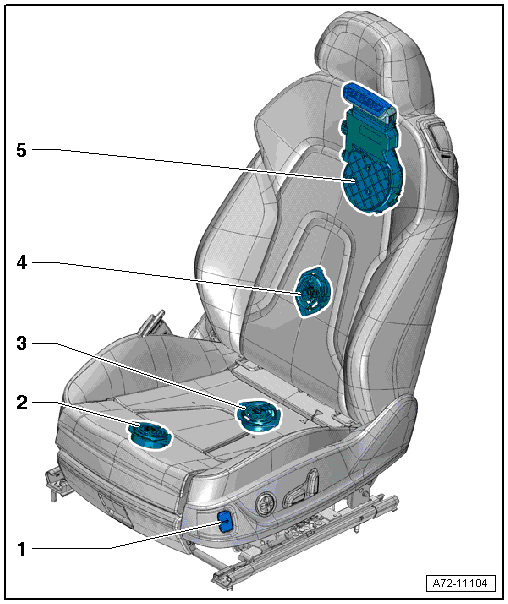

Overview - Fans, Seat Cushion And Backrest
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
- Neck Heating Switch
- Driver side: Left Neck Heating Switch -E678-
- Front passenger side: Right Neck Heating Switch -E679-
- Removing and Installing. Refer to LEFT/RIGHT NECK HEATING SWITCH .
- Seat Cushion Blower Fan
- Driver side: Driver Seat Cushion Blower Fan -V390-
- Front passenger side: Front Passenger Seat Cushion Blower Fan -V391-
- Removing and Installing. Refer to SEAT CUSHION FAN, REMOVING AND INSTALLING .
- Seat Cushion Fan 2
- Driver side: Driver Seat Cushion Blower Fan 2 -V419-
- Front passenger side: Front Passenger Seat Cushion Blower Fan 2 -V420-
- Removing and Installing. Refer to SEAT CUSHION FAN, REMOVING AND INSTALLING .
- Backrest Blower Fan
- Driver side: Driver Seat Backrest Blower Fan -V388-
- Front passenger side: Front Passenger Seat Backrest Blower Fan -V389-
- Removing and Installing. Refer to BACKREST FAN, REMOVING AND INSTALLING .
- Neck Heating Blower
- Driver side: Left Neck Heating Fan -V450-
- Front passenger side: Right Neck Heating Fan -V451-
- Removing and Installing. Refer to LEFT AND RIGHT NECK HEATING FAN .
Overview - Seat Cushion Fan
- Screw - 1.5 Nm
- Cover Grille
- Seal
- Seat Cushion Blower Fan
